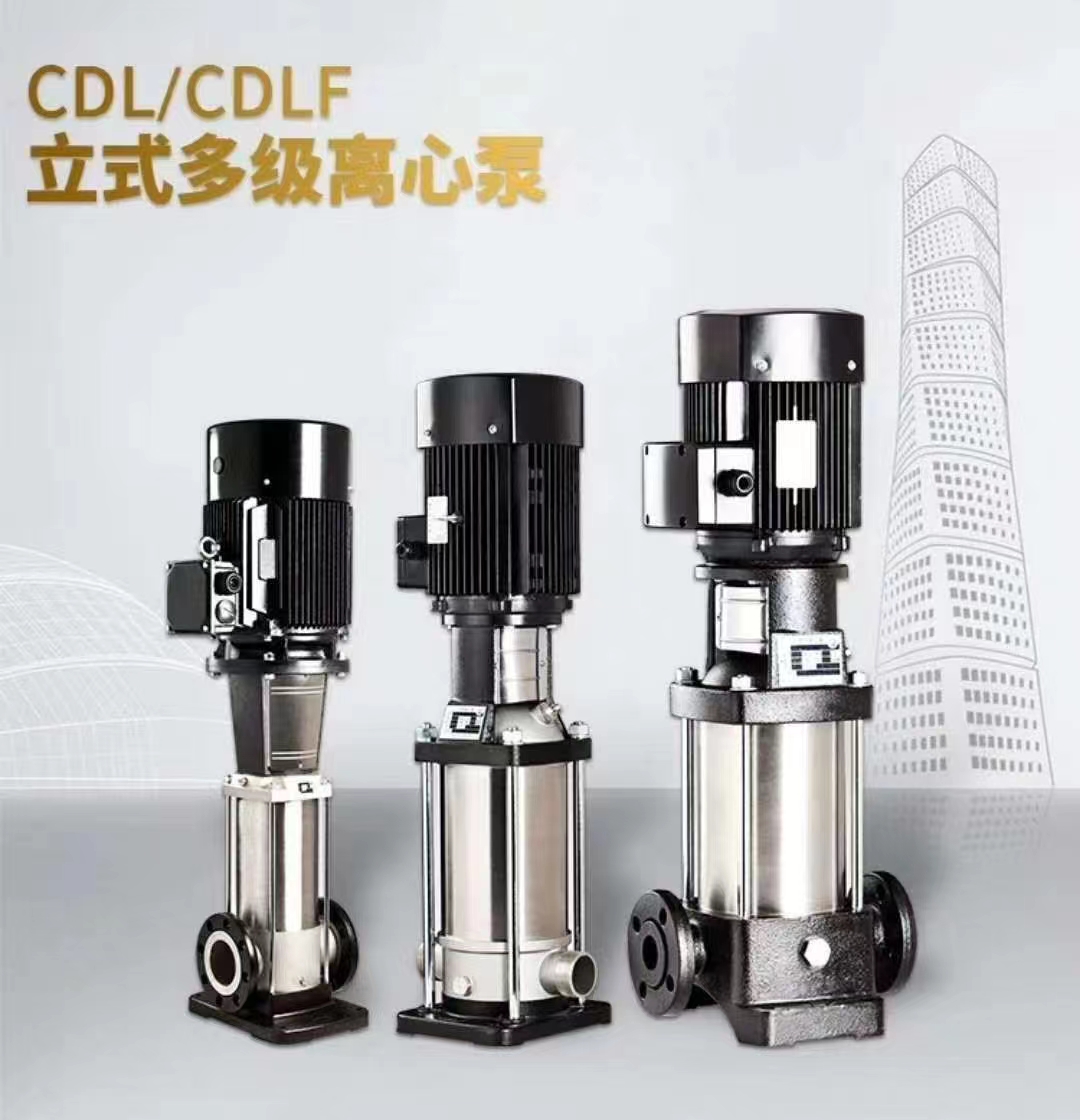

CDL.CDLF立式不锈钢多级泵特点|features
QDL、QDLF系列不锈钢多级离心泵是非自吸立式多级离心泵，采用标准立式电机和集装式机械密封，具有体积小、重量轻、噪声低、维护方便、外形美观等优点，广范应用于民用、工业、农业、水处理系统等领域。
QDL、QDLFseries Stainless Steel Multistage Centrifugal Pump is a kind of non self-priming vertical multistage centrifugal pumps, which adopts classical vertical electric motor and assembly mechanicalseal. It possesses many advantages, such as small volume, light weight,low noise,easy maintenance,elegantappearance etc.DBL Series are widely used in the areas of daily life,industry,agriculture,water treatment system, and so on.
泵|pumps
立式结构，进出口法兰在同一中心线上，结构紧凑，占地面积小，安装方便。
Vertical and compact structure, the inlet and outlet flanges are located at the same central line, small area occupation and easy installation.
采用集装式机械密封，使安装维护操作更安全、方便，并确保密封的可靠性。
Assembly mechanical seal,making installation and maintenance safer and more convenient,and guaranteeing the reliability of the mechanical seal.
QDLF型过流部件均采用不锈钢材质(QDL型主要过流部件采用不锈钢材质)，不污染介质且保证使用寿命长、外形美观。
Wet parts are made of stainless steel, which will not contaminate medium and possess lengthy service life And elegant appearance.
电机轴与泵轴通过联轴器直接连接，连接精度高。
Electric motor shaft directly and accurately connects with pump shaft through coupling.噪声低，振动小。
Low noise and less vibration.采用标准化设计，通用性好。
Standardized design and outstanding universality.
电机|motor
防护等级protection class:IP55绝缘等级insulation class: F
标准电压Standard volrage:1x220-230/240V50Hz
3x200V-220/346-380V 50Hz3 x 220V-240/380-415V 50Hz3x380-415V 50Hz
